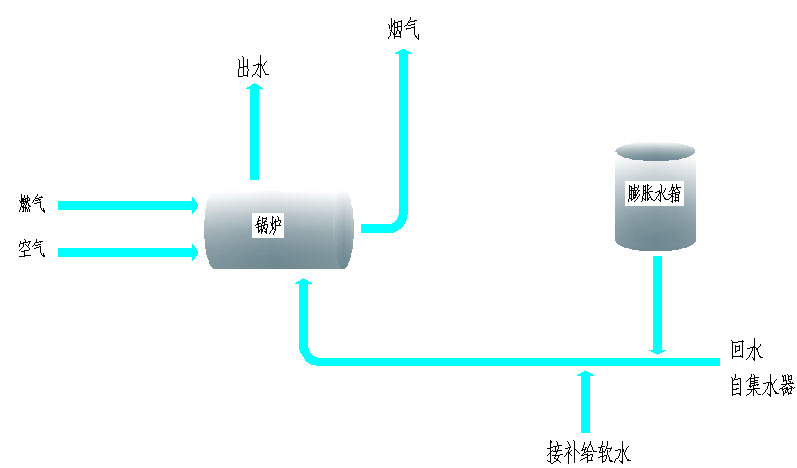

Steam and feed flow diagram

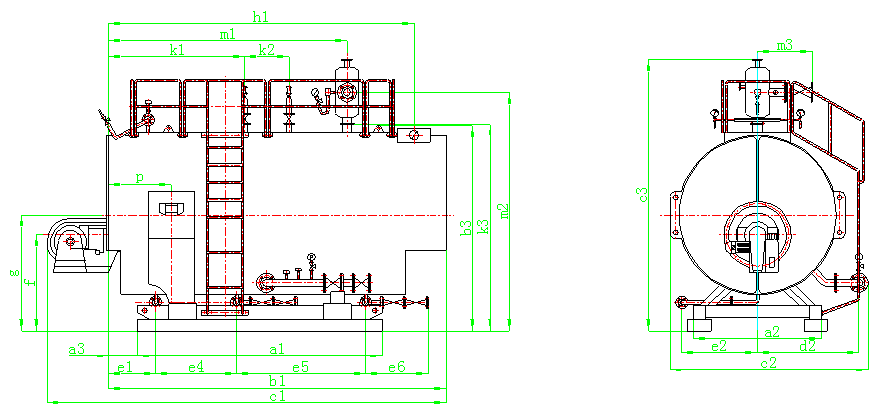

Size of S0.35-14MW hot water boiler
|
Length (mm) |
Base |
Transportation clearance |
Max overall dimension |
Water inlet |
Burner center |
Equipment center |
||||||||
|
Thermal power |
a1 |
a2 |
a3 |
b1 |
b2 |
b3 |
c1 |
c2 |
c3 |
d1 |
d2 |
d3 |
f |
g |
|
0.35MW |
2100 |
1100 |
250 |
3200 |
1370 |
1710 |
3430 |
1725 |
2335 |
2100 |
670 |
550 |
870 |
1000 |
|
0.7MW |
2600 |
1300 |
0 |
3283 |
1605 |
1960 |
3813 |
2085 |
2716 |
2488 |
850 |
560 |
905 |
1110 |
|
1.05MW |
3050 |
1300 |
0 |
3751 |
1735 |
2060 |
4291 |
2085 |
2816 |
3138 |
900 |
574 |
910 |
1160 |
|
1.4MW |
2740 |
1400 |
85 |
3750 |
1935 |
2215 |
4236 |
2060 |
3085 |
2870 |
1020 |
600 |
1000 |
1250 |
|
2.1MW |
3450 |
1600 |
425 |
4594 |
2145 |
2400 |
5308 |
2285 |
3340 |
3440 |
1050 |
650 |
1030 |
1350 |
|
2.8MW |
3450 |
1700 |
525 |
4880 |
2395 |
2612 |
5960 |
2515 |
3595 |
3869 |
1237 |
640 |
1136 |
1460 |
|
4.2MW |
3990 |
1850 |
525 |
5610 |
2550 |
2860 |
6950 |
2690 |
3949 |
4276 |
1295 |
660 |
1205 |
1580 |
|
5.6MW |
4650 |
1900 |
625 |
6196 |
2850 |
3094 |
3094 |
3025 |
4290 |
5150 |
1500 |
742 |
1215 |
1690 |
|
7.0MW |
5000 |
2000 |
625 |
6648 |
2940 |
3204 |
3204 |
3115 |
4400 |
5927 |
1450 |
475 |
1270 |
1750 |
|
8.4MW |
5700 |
1950 |
525 |
6900 |
3090 |
3510 |
3510 |
3240 |
4980 |
5916 |
1595 |
890 |
1460 |
2010 |
|
10.5MW |
5750 |
2500 |
525 |
7200 |
3525 |
3758 |
3758 |
3665 |
5170 |
6040 |
1650 |
625 |
1590 |
2100 |
|
14MW |
7150 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Length (mm) |
Manual sewage draining exit |
Relief valve connector |
Water outlet |
Chimney breast |
Control cabinet |
||||||||||
|
Thermal power |
e1 |
e2 |
e3 |
e4 |
e5 |
e6 |
k1 |
k2 |
k3 |
m1 |
m2 |
m3 |
h1 |
h2 |
p |
|
0.35MW |
2100 |
650 |
310 |
— |
— |
540 |
2050 |
— |
1820 |
1550 |
1985 |
470 |
2475 |
1700 |
850 |
|
0.7MW |
2180 |
800 |
300 |
— |
— |
600 |
2150 |
— |
2080 |
1650 |
2276 |
520 |
2550 |
1960 |
570 |
|
1.05MW |
2630 |
800 |
300 |
|
|
600 |
1750 |
|
2195 |
2200 |
2376 |
520 |
3000 |
2060 |
570 |
|
1.4MW |
2790 |
850 |
338 |
— |
— |
700 |
1750 |
— |
2335 |
2350 |
2650 |
560 |
3220 |
2215 |
620 |
|
2.1MW |
3600 |
900 |
360 |
— |
— |
700 |
1750 |
400 |
2415 |
2750 |
2870 |
750 |
4016 |
2400 |
1030 |
|
2.8MW |
2100 |
950 |
348 |
1710 |
— |
700 |
2190 |
400 |
2747 |
3090 |
3082 |
805 |
4245 |
2612 |
1140 |
|
4.2MW |
2860 |
1050 |
366 |
1590 |
— |
700 |
2450 |
500 |
2998 |
3650 |
3408 |
880 |
5005 |
2860 |
1190 |
|
5.6MW |
3270 |
1150 |
346 |
1800 |
— |
700 |
2950 |
500 |
3254 |
4100 |
3675 |
800 |
5575 |
3050 |
1700 |
|
7.0MW |
1450 |
1180 |
350 |
2100 |
2050 |
700 |
2700 |
600 |
3364 |
4000 |
3784 |
800 |
6025 |
3150 |
1700 |
|
8.4MW |
1950 |
1200 |
400 |
1950 |
1950 |
700 |
1690 |
600 |
3726 |
4300 |
4260 |
860 |
6350 |
3510 |
1940 |
|
10.5MW |
740 |
1600 |
350 |
2200 |
3150 |
700 |
2900 |
650 |
3918 |
4700 |
4448 |
860 |
6640 |
3758 |
1850 |
|
14MW |
2000 |
1800 |
330 |
2150 |
2450 |
700 |
3000 |
900 |
4370 |
5200 |
4850 |
860 |
7284 |
4165 |
2200 |
|
Note:The base elevation for 8.4MW,10.5MW and 14MW is 400mm. |
|||||||||||||||
※ Compact structure, attractive appearance.
※ Reasonable design of heating surface can effectively control resistance of smoke.
※ Appropriate control of exhaust gas temperature can ensure boiler efficiency.
※ Adopts unique detachable smoke box, thus it is easy for maintenance.
※ Special spring type explosion door and guarantee safety of boiler.
※ Adopts control system of programmable logic controller (PLC) and touch screen.
※ All-around online help, multilevel Chinese pop-up menu and breakdown maintenance manual.
※ All-around safety interlocking protection function can ensure the safe and efficient operation of boiler.
※ Sufficient PLC reserved port and modular expanding module can realize group control, remote control and building control.
